Violet

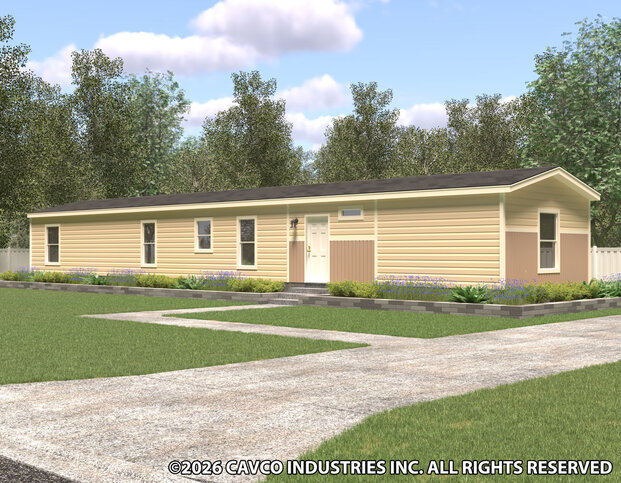

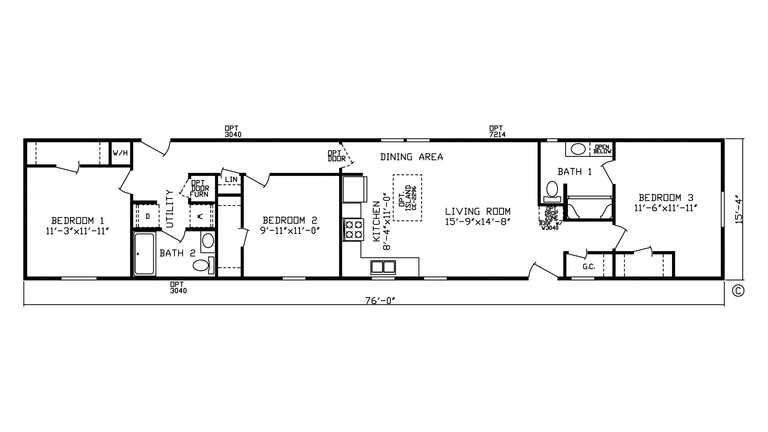

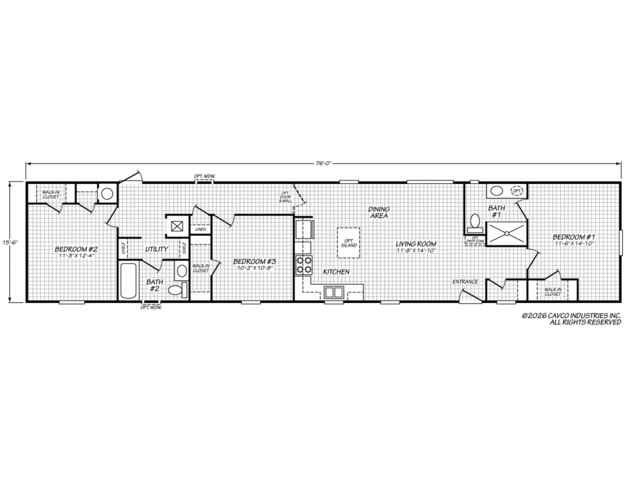

Designed with communities in mind! This series offers 6 community-friendly floorplans with 7 complimentary exterior packages to create endless options for your community. These intentionally designed floor plans offer identical front door placement, home utilities in preferred locations, are available in upgraded standard features and more amazing features to help your location stand out.

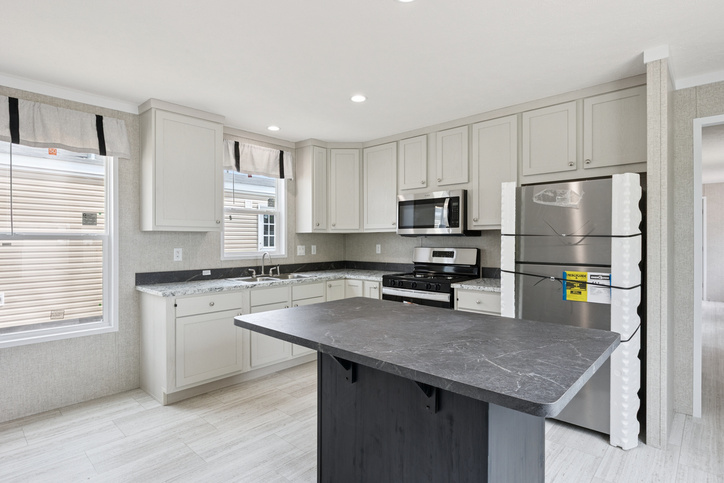

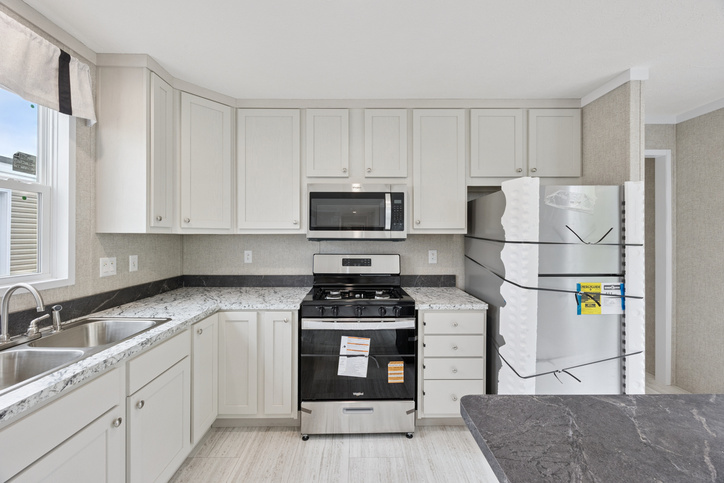

APPLIANCES

• Stainless Steel
• Range — 30" Standard Clean Gas
• Range Hood — 30" Range Vent Black
• Refrigerator — 18 cf Frost Free
• Water Heater — 30 Gallon Electric
• Water Heater Drain Pan — 22" Plastic (Electric ONLY)

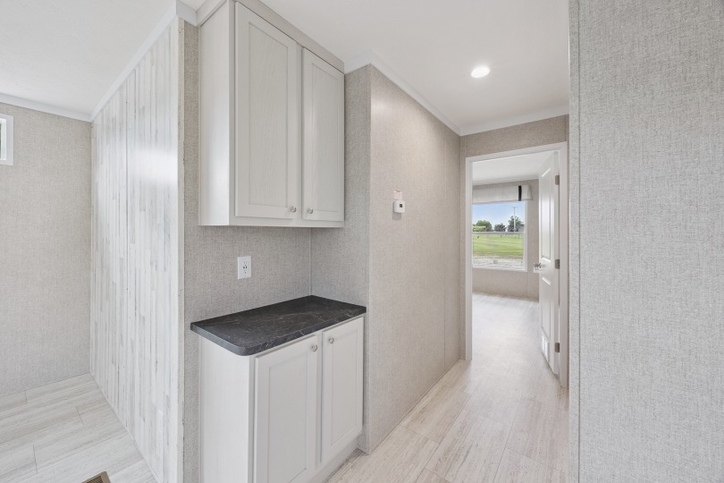

CABINETS

• Wrapped
• 42" Kitchen Overheads
• Cabinet Over Refrigerator — Standard
• Drawer over Door Assembly — Standard
• Drawer Bank-Kitchen — 1 Standard
• Interior — Smooth Birch
• Center Shelf in Base Cabinets — Standard
• Center Overhead Shelving — Adjustable

CABINET DOORS

• Wrapped
• Base/Overhead Doors — Flat Panel Wrap-Square
• Hutch Doors with Glass Inserts — Clear-Per Print
• Door Hinges — Hidden Hinge
• Drawer Guides — D-2200 Glides

MISC. CABINETRY

• Electric Panel Door — Optional
• Countertop — Laminate
• Backsplash — 4-1/4" Laminate Kitchen & Baths
• Edging — Self Edged
• Closet Shelf — Wire with 3 in Pantry & Linen
• Shelf Over Washer/Dryer — Standard
• Bath Hardware — Optional

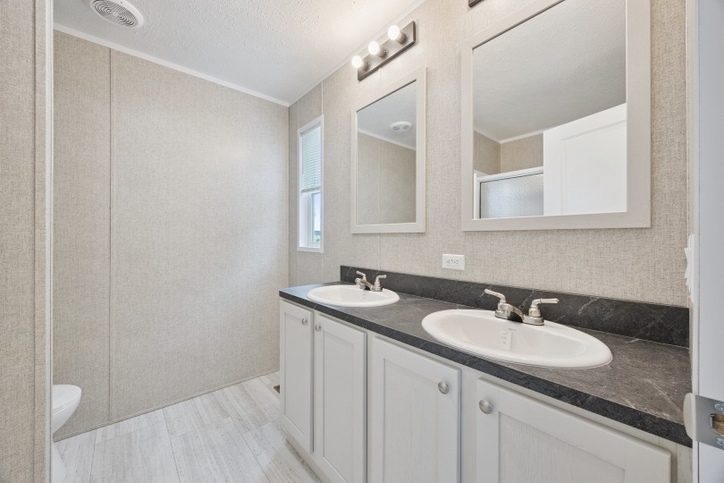

• Bath 2 Lav Countertops — Laminate
• Master Bath — Box Cabinet
• Entertainment Center — Optional Floating — Per Print

EXTERIOR DOORS

• Front Door — 38"x82" 6-Pnl Deco
• Rear Door — 38"x82" 9-Lite
• Deadbolts – Included with Both Doors

DRAPES/DÉCOR

• Cloth Valance — Living Areas/Bedrooms
• Mini Blinds — 1" Throughout
• Shower Curtain — Plastic On Straight Rod

ELECTRICAL

• Service Panel - 100 AMP 12/20 Box
• Breaker Box Lock Device — Standard
• Interior Switches — SCD Single Switch
• Interior Receptacles — SCD Single Receptacles
• Exterior Receptacles -Non GFI — 1-Below Floor
• Exterior Receptacles -GFI — 1-Sidewall
• Dryer Receptacle-240V — Standard
• Bath Exhaust Fan — Non-Lighted
• GFI Receptacles — Bath, Kitchen
• CO Detector — STD per Print

EXTERIOR WALLS

• 96" Sidewall Height
• 16" o.c. Stud Spacing
• 2x4x93" Studs & Backers
• 2x4 #3 SPF Top/Bottom Plates
• R11-Kraft Batt Exterior Wall Insulation
• F6400LV Adhesive
• 1/2" VOG Wall Covering

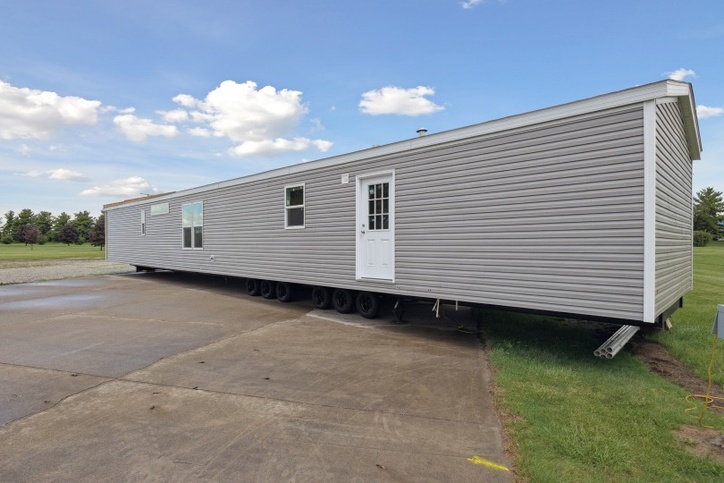

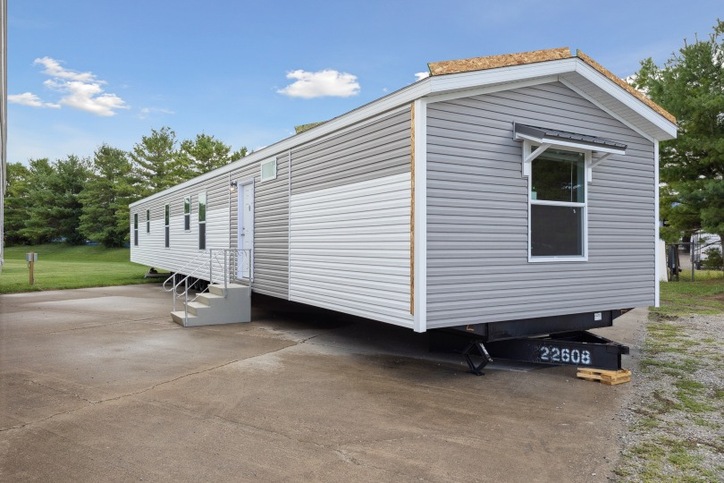

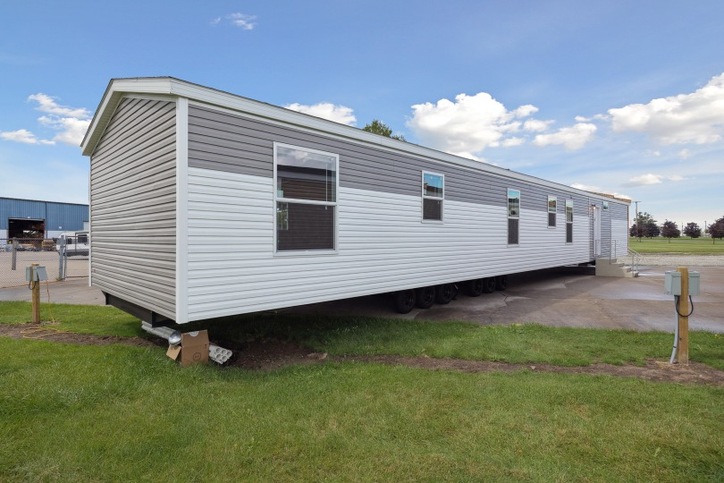

EXTERIOR TREATMENT

• OSB Sheathing
• Standard Housewrap
• Double 4" Dutch Lap Siding
• 10' Per Siding Color Outside Corner
• Soffit Receiver Crown Molding
• Fully Vented Soffit
• Fascia — Triple Bead Aluminum Fascia
• Window Shutters — Door side/Hitch

FLOOR

• 16" o.c. Joist Spacing
• Joists — 2x6 #3 (14'), 2x6 #2 (16')
• Side Rails — 2x6 #3 (14'), 2x6 #2 (16')
• Bottom Board — Shepweave ll
• Floor Insulation-Belly — R-11 (6" Blanket)
• Floor Insulation-Outriggers — R-11 (Batten 16"x48")
• Decking — 5/8" 4'x8' T&G OSB

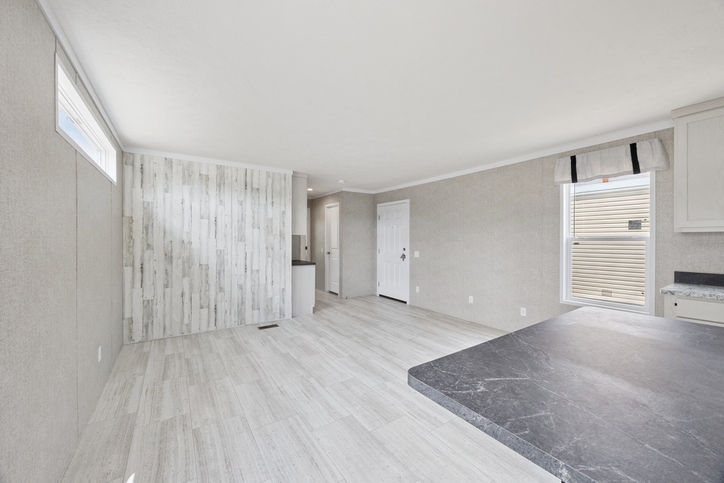

FLOOR COVERING

• Carpet
• Carpet Pad
• Carpet Bar
• Tack Strip
• Carpet Placement
• Linoleum — Armorflor
• Linoleum Placement – Living room, kitchen, dining room, utility, foyer, baths, furnace, water heater (per print)

HEATING

• Furnace — Gas
• Thermostat — Programmable
• POS Furnace Venting — Thru Overhang
• Heat — In-Line
• Heat Duct — HVAC Fiberglass
• Registers — 4"x10" Floor Grill
• Return Air Method — Undercut Passage Doors

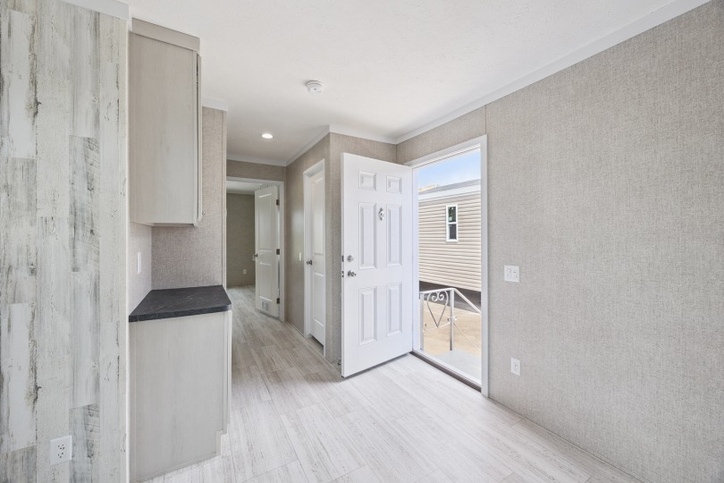

INTERIOR DOORS

• White 2-Panel

• Door Knobs-Passage — Satin Nickel
• Door Stops — Wall Mount Bumper
• Door Hinges (3 ea.) - Satin Nickel
• Furnace Door - Standard

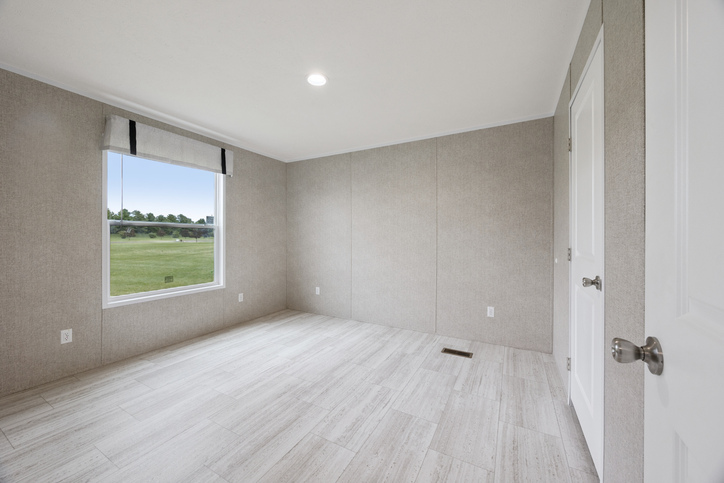

LIGHTS

• All Ceiling Lights — 4" LED Can Lights
• Dining Room - (2) 4" LED Can Lights

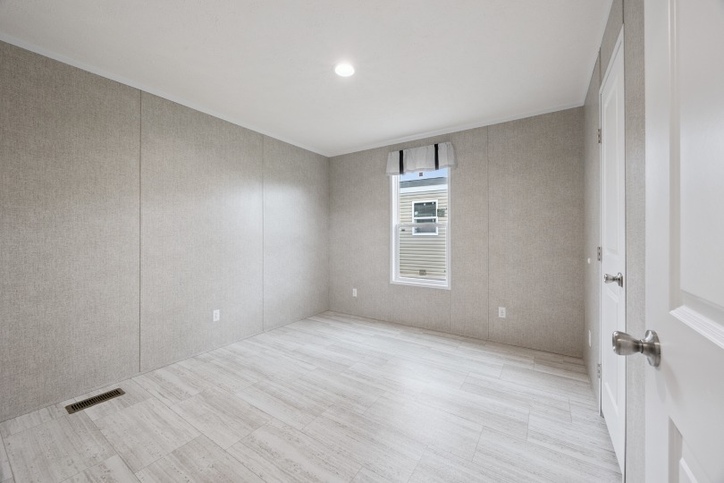

• Bedrooms — 6" LED Can Light

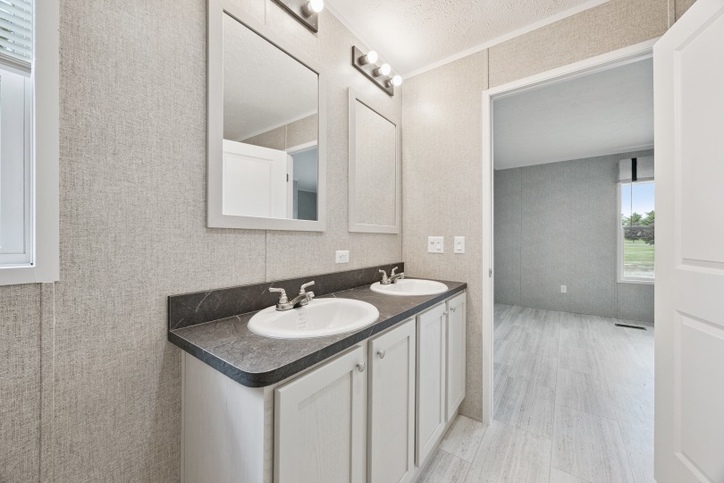

• Bath-Over Lav — 18" 3-Light Strip Light, (1) 4" LED Can Light (Bath 1)
• Front/Rear Door — Rust Coach Lights

MIRRORS

• Bathroom Mirrors (24"x36") - Wrap Cabinet Door Frame Trimmed

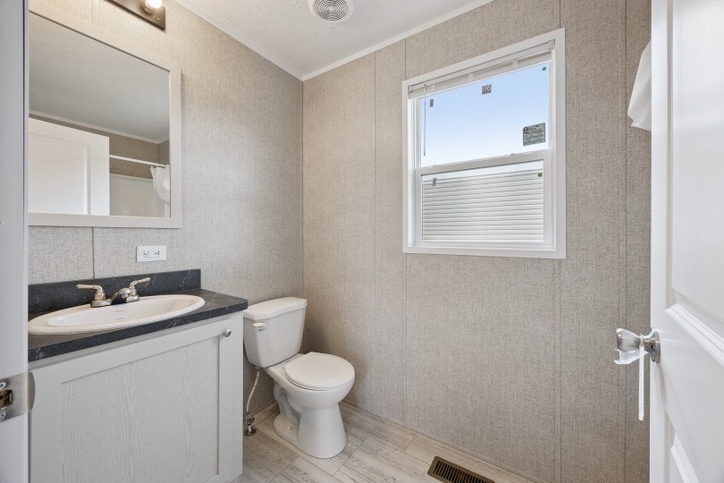

PLUMBING

• Faucets-Nickel

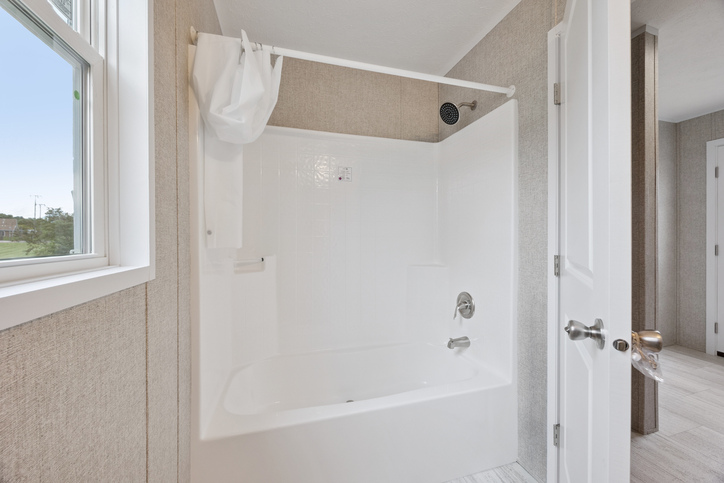

• Tub/Shower — 1-Piece Fiberglass-Per Print

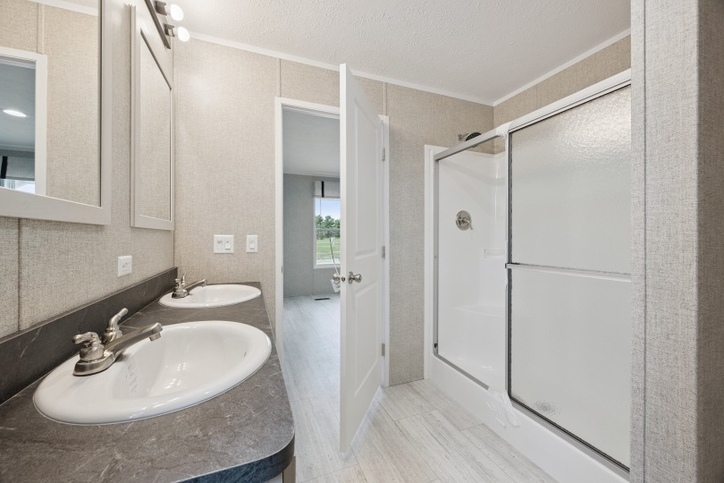

• Shower Door — Standard on showers
• Tub & Shower Faucets — S/L with Shower Head
• Tub Drain — Tip-Toe Popup

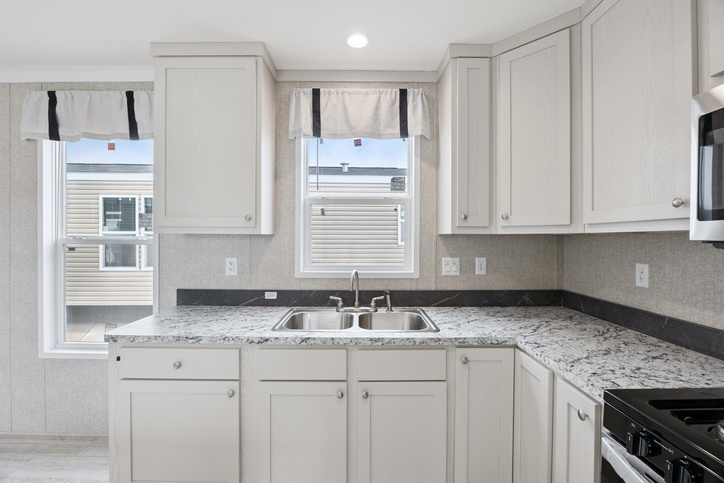

• Kitchen Sink — 33"x19"x7" Stainless Steel

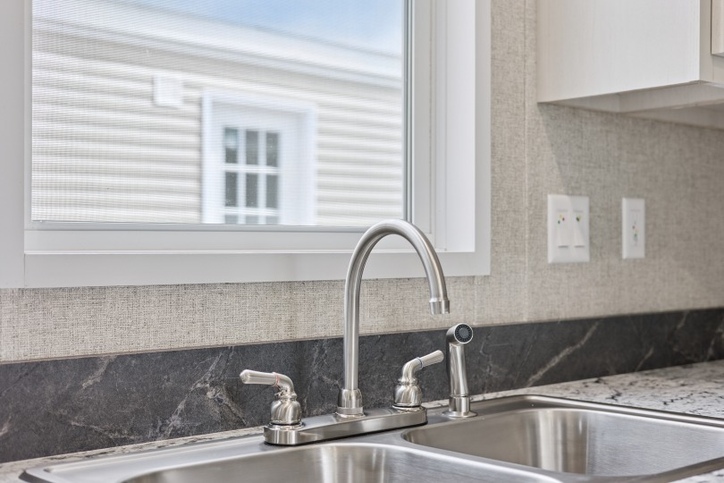

• Kitchen Faucet — 2-Handle No Spray

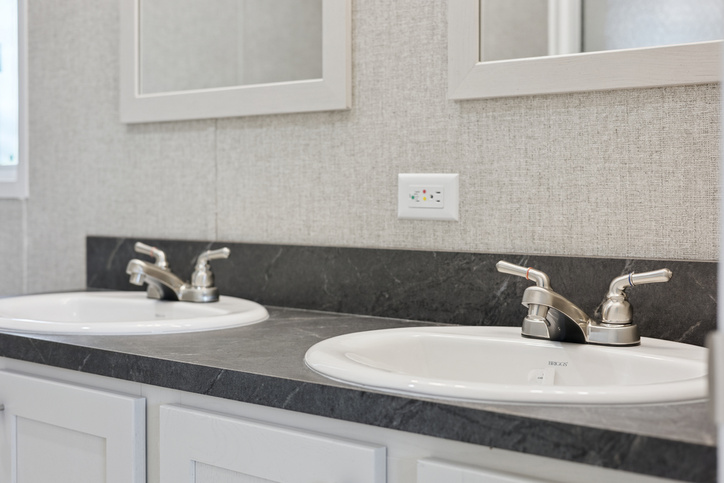

• Bathroom Sink — 17 X 20 China Lav
• Lav Faucet — 2-Handle
• Lav Drain — Push-Popup
• Commodes — Round
• Frost Free Exterior Faucet — Optional
• Plumb for Washer — Standard
• Water Shut-Off Valves — Standard Throughout
• Master Shut-Off Valve — Standard (Below Floor)

ROOF

• Roof Pitch — 3/12 Fixed
• Roof Load — 20#
• Ceiling Slope — Flat
• Ceiling Material — HS Gyp
• Ceiling Finish — Stipple with Vapor Barrier
• Rafter Spacing — 24" o.c.
• Roof Insulation — R-29 Blown
• Innovents-Styrofoam — 22 1/2"x48" Vent Chutes
• Roof Underlayment — GoGuard
• Roof Decking — 7/16" OSB
• H-Clips — Standard
• Shingles — Tamko Elite 25 Year
• Roof Venting — Cool Vent System
• Roof Overhang: Sidewalls — 2 3/4", Endwall (Rear) - 6", Endwall (Front) - 12"

WINDOWS

• No Grid
• Window Series — Low-E Vinyl (Argon/NO Grids)
