Facts and Features

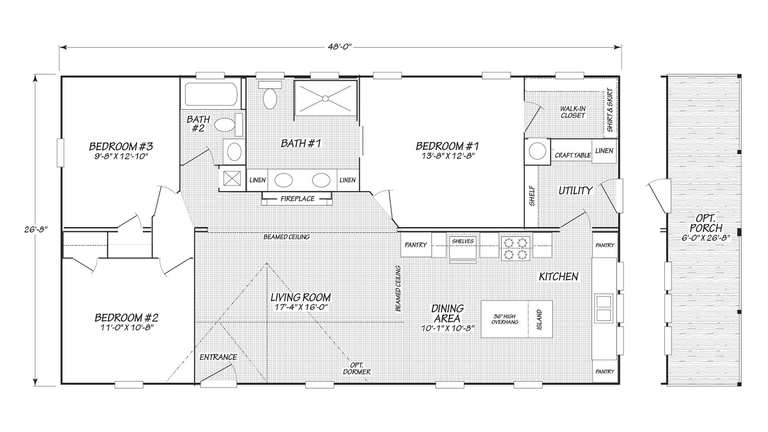

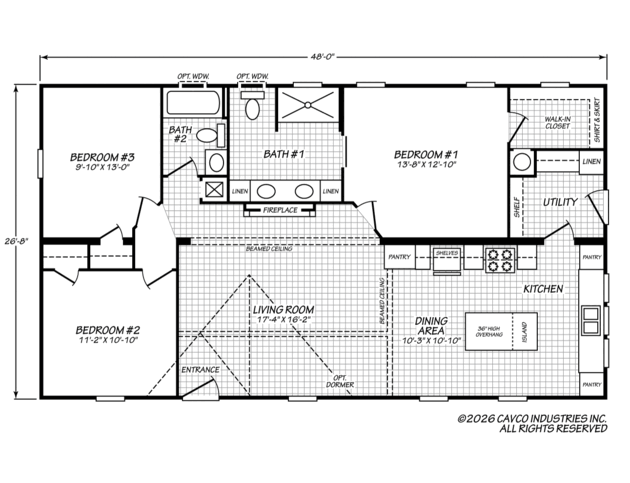

1280 Square Feet
3 Bedrooms
2 Bathrooms
Double-wide
Manufactured
Series: Inspire
Built by Cavco - Lafayette, Lafayette, TNDownload Files
- Inspire Series Decor Board (PDF/1.0 MB)
Description
Coming Soon!
Standard Features
CONSTRUCTION
- Insulation R11 Floor/R11 Walls/R28 Ceiling
- 24” On Center Rafter Spacing
- 16” O.C. Floor Joist
- Double Perimeter Rail
- 2x6 Floor Joist, 16” OC-28’Wide
- 2x8 Floor Joist, 16” OC-16'&32’ Wide
- 2x4 Exterior Walls 16” On Center
- 2x3 Interior Walls 24” On Center
- 8’ Sidewalls with Hand Stomped Flat Ceiling
- Removable Hitch
- 2x4 Marriage Walls
- 23/32 T&G Floor Decking
- 20# Roof Load
- OSB with House Wrap
- Wind Zone 1
ELECTRICAL
- 200 AMP Main Panel Box
- 2” PVC Conduit
- 6” LED Recessed Lighting
- Smoke Alarms Per Code
- Programmable Thermostat
- Exterior Lights at Each Exterior Door –Jelly Jar
- Exterior GFCI Receptacle (Rear Door)
PLUMBING/HEATING
- Electric Furnace
- Electric 40 Gallon Water Heater
- Whole House Water Shut Off
- Water Shutoff at Commodes
- Frost Free Exterior Faucet (Rear)
- 8” Double-Bowl Sink
- Black Gooseneck Faucet

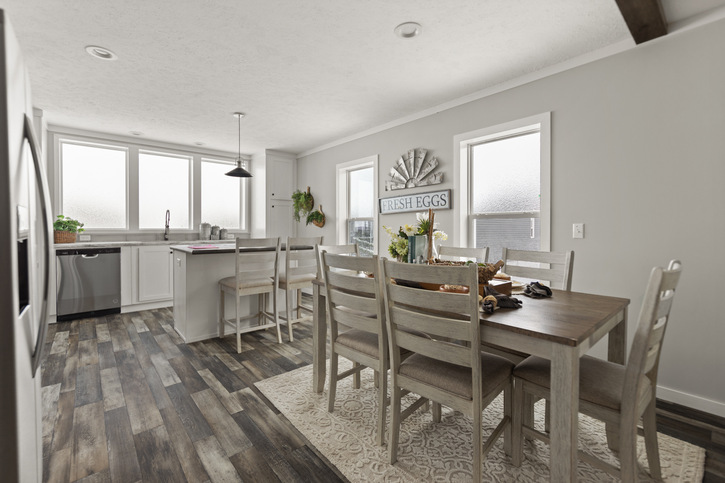

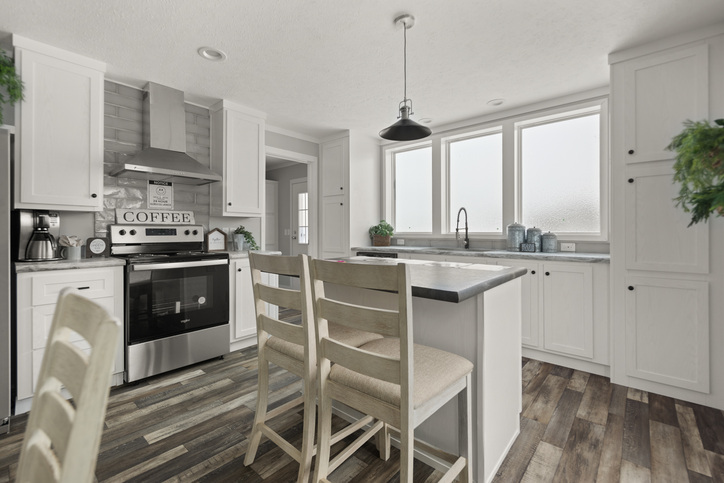

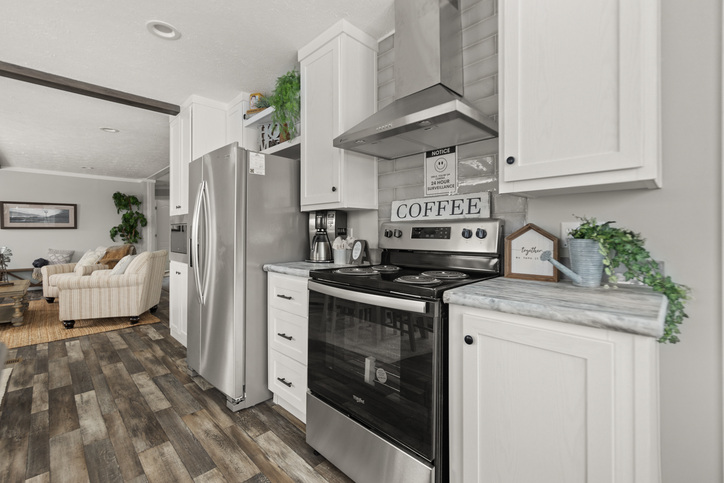

APPLIANCES
- Side by Side Chimney-Style Range Hood
- 18’ Cubic Foot Refrigerator
- 30” Electric Coil-Top Range
- Appliances Standard-Stainless

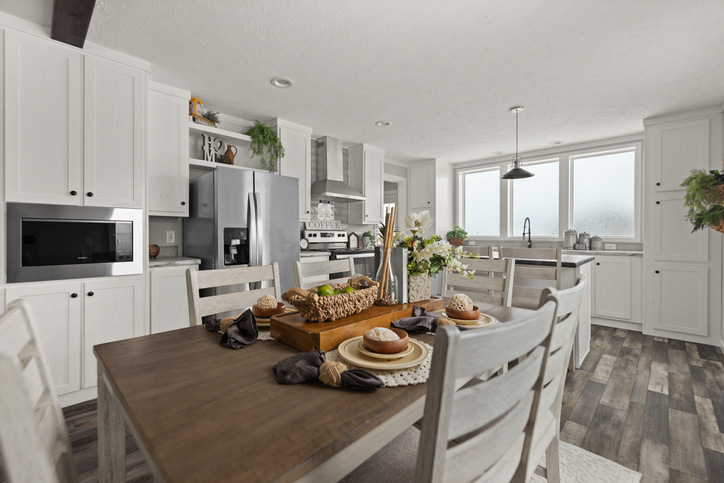

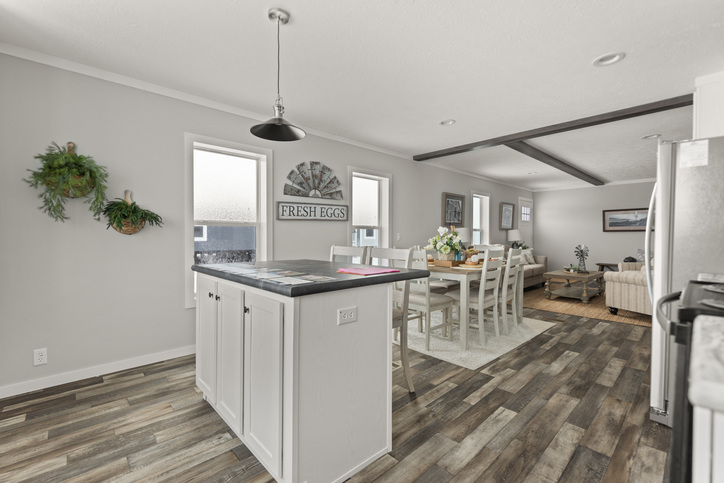

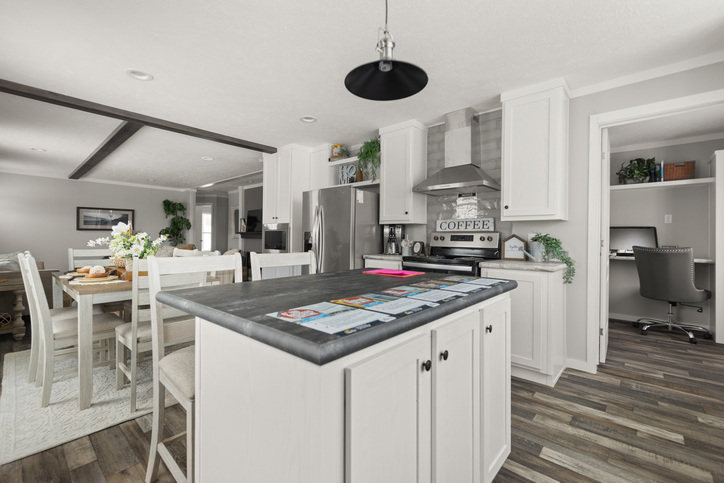

CABINETRY
- Residential Box-Style MDF Cabinets
- MDF Shake Style Doors & Drawer Fronts with Soft Close Hidden Hinges
- Round Cabinet Knobs-Black
- 45” Over Head Cabinets
- Lined Base Cabinets with Shelf
- Hardwood Stiles
- 3 Drawer Bank -Zargen
- Shelf Above Refrigerator
- Rolled Edge Countertops
- 1-Row Ceramic Backsplash Kitchen & Bath

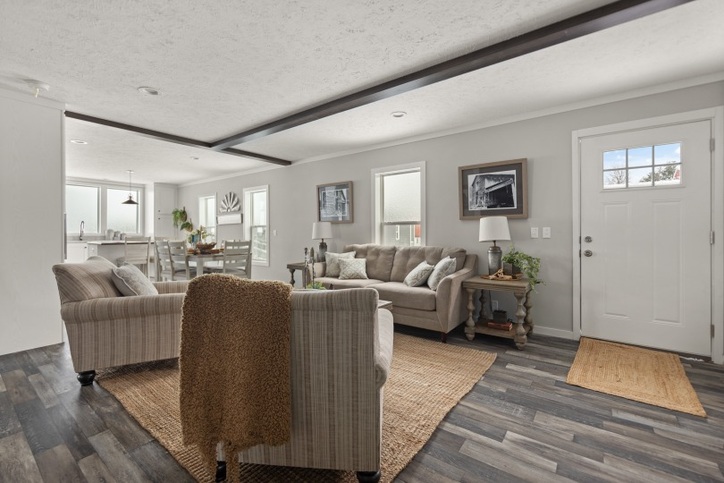

INTERIORS
- 2-Panel Interior Doors throughout
- Wall-Mounted Door Stops throughout
- Wood Grain Linoleum throughout with Matching Transition Strip

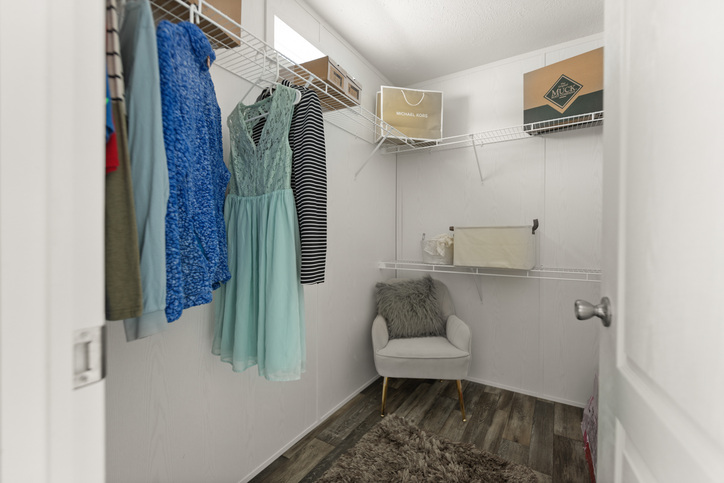

- Wire Shelving in Closets
- Finish Drywall with Primer Coat Paint
- VOG Accent Behind Range
- VOG Accent Wall LVR
- VOG Finished Closets
- 2” Colonial Trim & Baseboard throughout Except Closets
- 2” Window Trim
- 2” Interior Door Trim
- 3” Exterior Door Trim

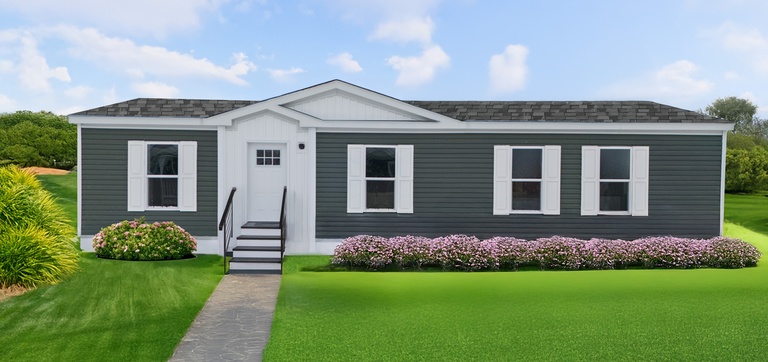

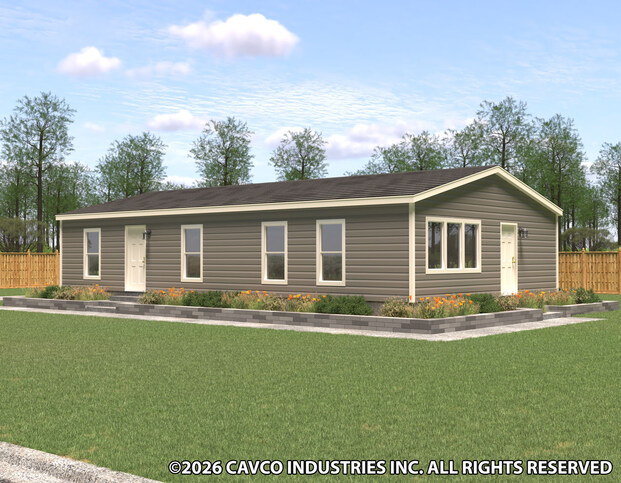

Exterior
- Shutters –Front Door Side (DW)
- Shutters- Front Door Side & Hitch End (SW)
- 3-Tab Shingles (25 Year) Driftwood
- Vinyl Lap Siding
- LP Facia and Metal Soffit
- Vinyl Low-E Insulated Windows with Argon Gas
- Front Door-38x82 6-Panel Steel Door
- Rear Door –34x82 Steel 9 Lite
- Dead Bolt Locks

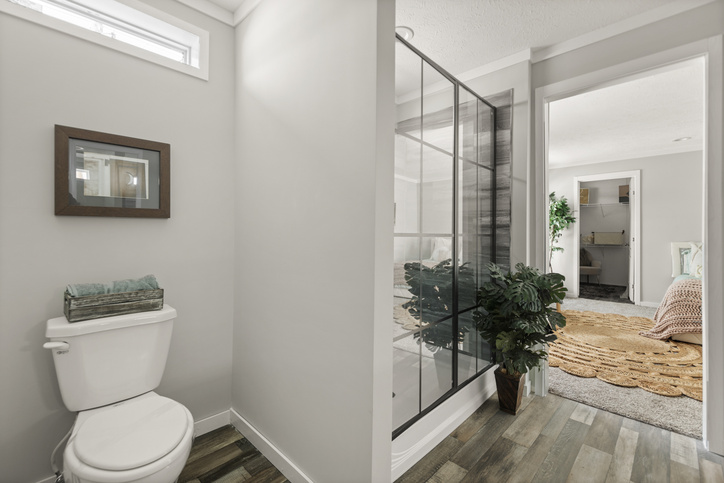

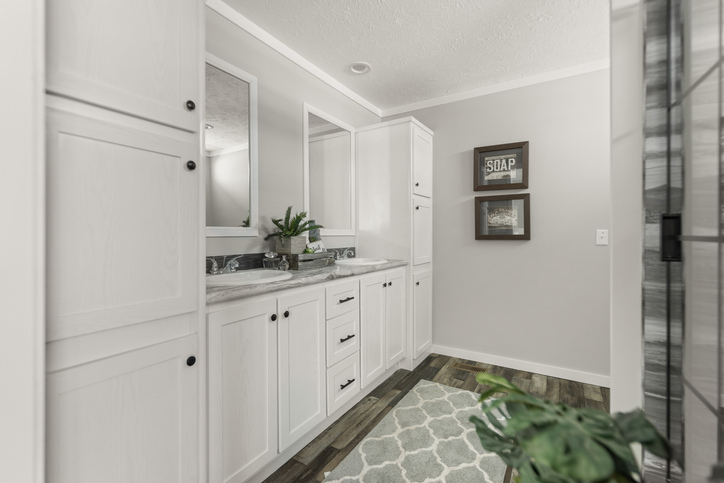

PRIMARY BATH
- Oval Porcelain Lavy Sinks with Single Lever Black Faucet
- Elongated Toilet
- 60” Fiberglass Shower Stall with Black Bypass Door
- 30”X 8” Transom Over Master Shower (Exception 28563R)

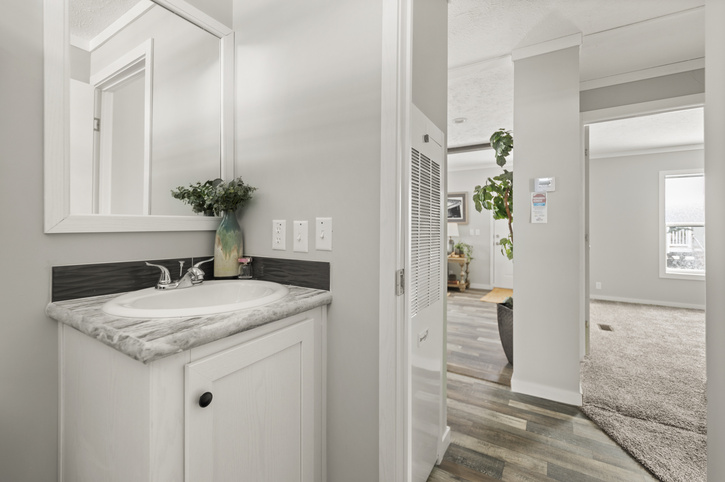

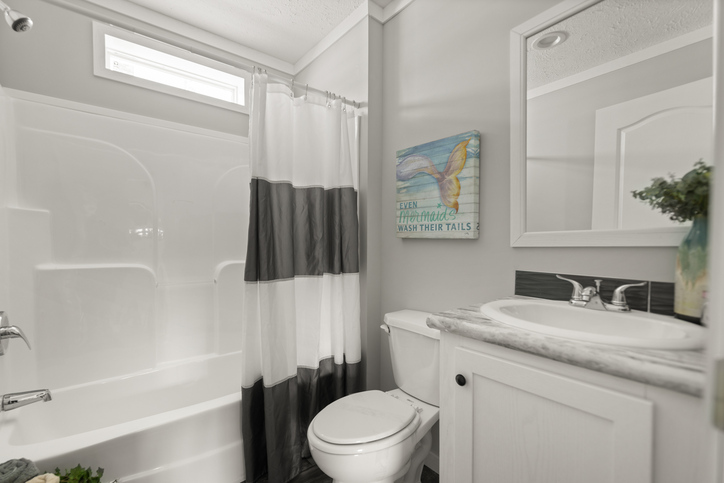

HALL BATH
- Oval Porcelain Sink with Single Lever Black Faucet
- 6030 FG Tub/Shower
